Adjustable Height Double-Deck Trailer For Sale
/wk

Trailer Lists

SPECIFICATION

Ref: TF1366

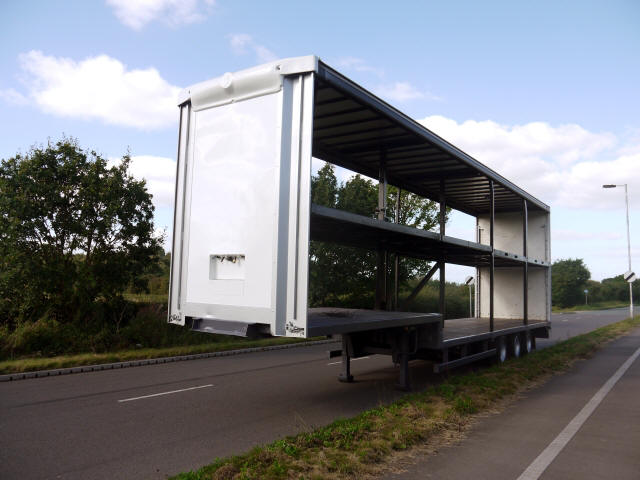

TRIAXLE STEPFRAME ADJUSTABLE DOUBLE-DECK CURTAINSIDER
2005 ULTIMATE

Recently repainted with white front & rear bulkheads, silver framework & wheels, black raves & chassis.
New curtains supplied & fitted to a colour of your choice.

Overall dimensions: 13.7Mtrs X 2.55Mtrs X 4.8Mtrs (15'- 9") on 1250mm coupler.

This trailer has a very versatile four-bay layout having butterfly type second decks in bays 1 & 2 and the height adjustable 'ratchet type' second decks in bays 3 & 4. The butterfly decks may be opened & closed manually whereas a fork truck is required to raise or lower each ratchet deck to any one of its eight positions @ 0.3Mtr increments.

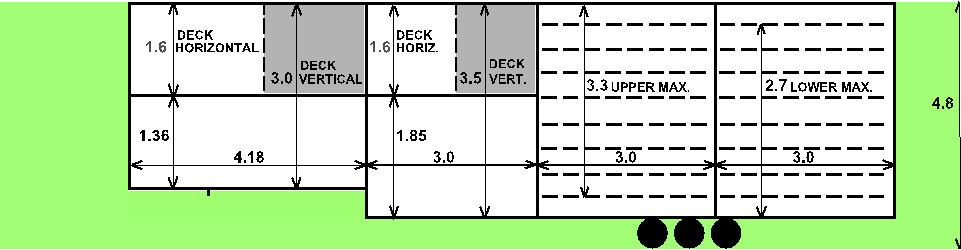

The wide range of loading dimensions are as follows:-

                                                        BAY 1                                       BAY 2                                BAY 3                               BAY 4
 DECK  TYPE                  HINGED BUTTERFLY        HINGED BUTTERFLY  8 POSITION RATCHET  8 POSITION RATCHET


(All dimensions are in Mtrs and are approximate pending an accurate appraisal.)

The trailer comprises:-
   Flat solid aluminium roof sheet.
   Front GRP wind embellisher.
   GRP front & rear bulkheads.
   Ply panel upper decking.
   Sound Keruing lower decks.
   ROR axles & air suspension.
   Suspension raise/lower facility.
   Drum brakes.
   Anti-lock braking.
   Current MOT.
   Tyres: 265/70X19.5 approx 70% to the good and First Life.

Having been fully refurbished and with new paint & curtains this trailer will provide trouble-free service whilst presenting a clean and professional image for your clients.

All ready to work (when curtains are made to order) for 99/wk HP or Finance Lease subject to status and availability.

Please enquire ANYTIME:-

         Tel:      07970 779294
         Fax:     08452 805634
         Text:    07970 779294
         Email:  sales@haulrite.com

Or please enter
TF1366 (or the type of trailer you require) in the first box:-
